Victorinox 91mm Flashlight / Whistle 10 Tool Super Scale for Swiss Army Knife
Add up to 10 tools to your 91mm Victorinox SAK!

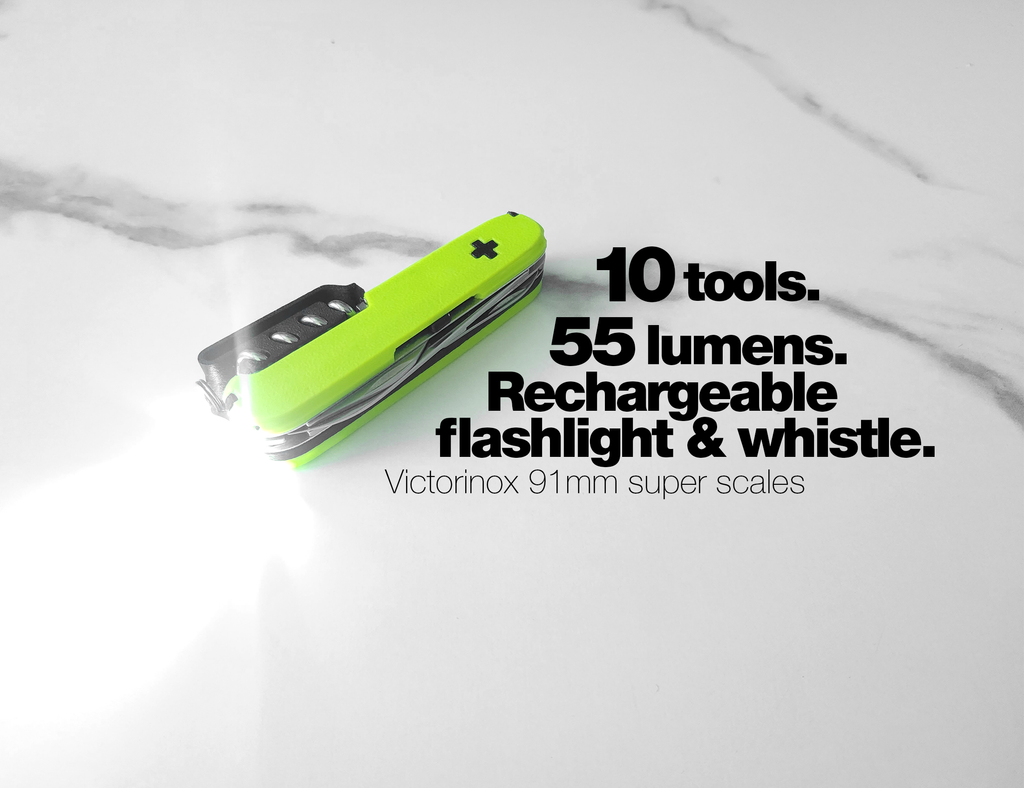

1. 55 lumen flashlight

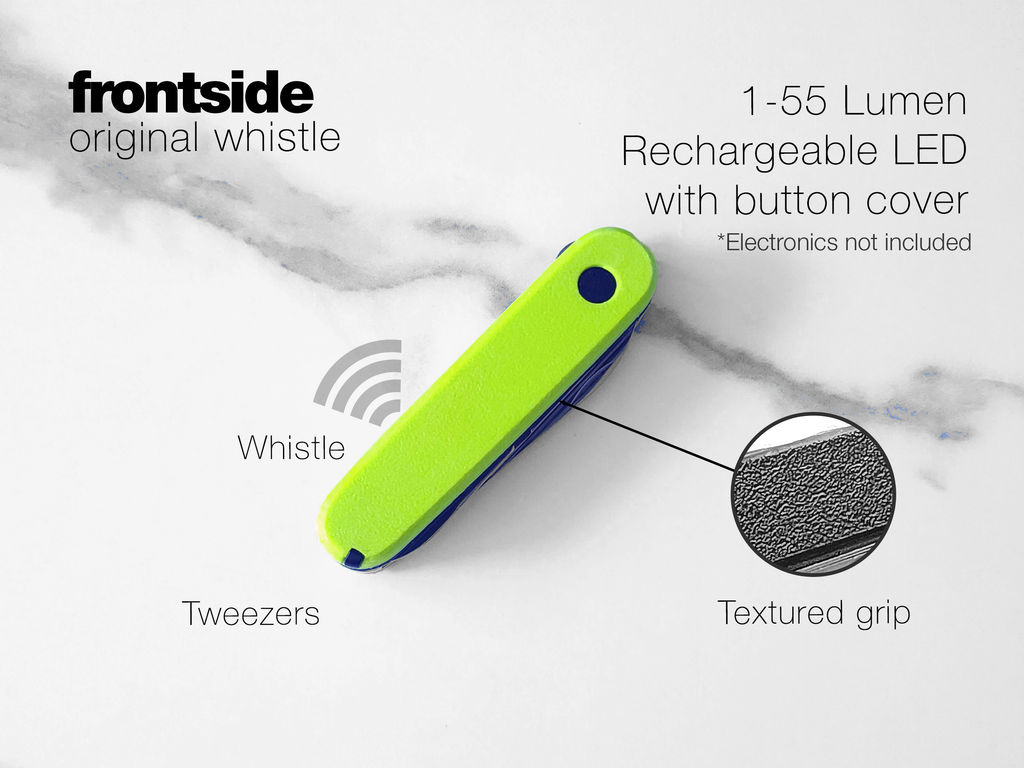

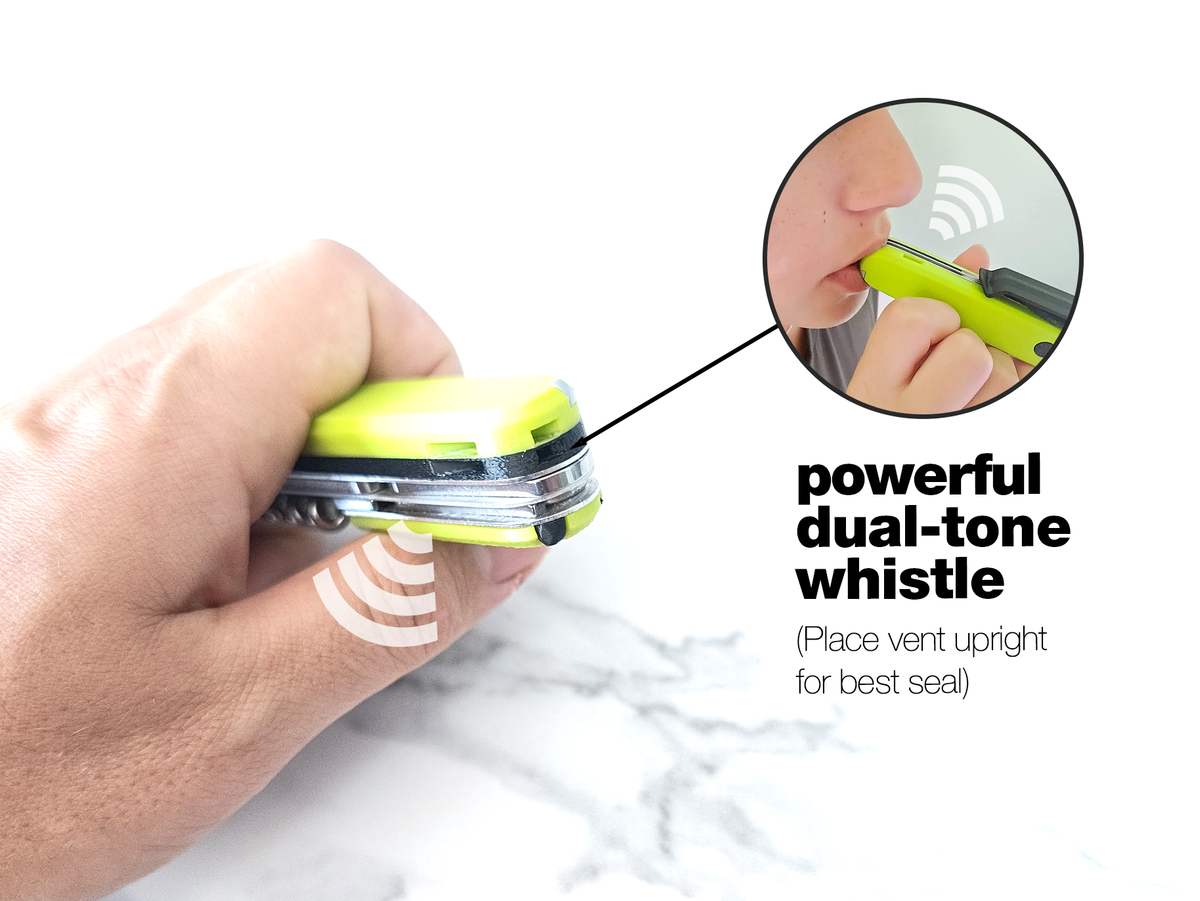

2. Dual-tone Whistle (Single tone on compass version)
3. Needle
4. Pen (sliding pen or long)
5. Large toothpick
6. Small toothpick
7. Tweezers
8-9. Leatherman microbit - Size 0 Phillips / 1.5mm flathead.
10. Compass
REQUIRES

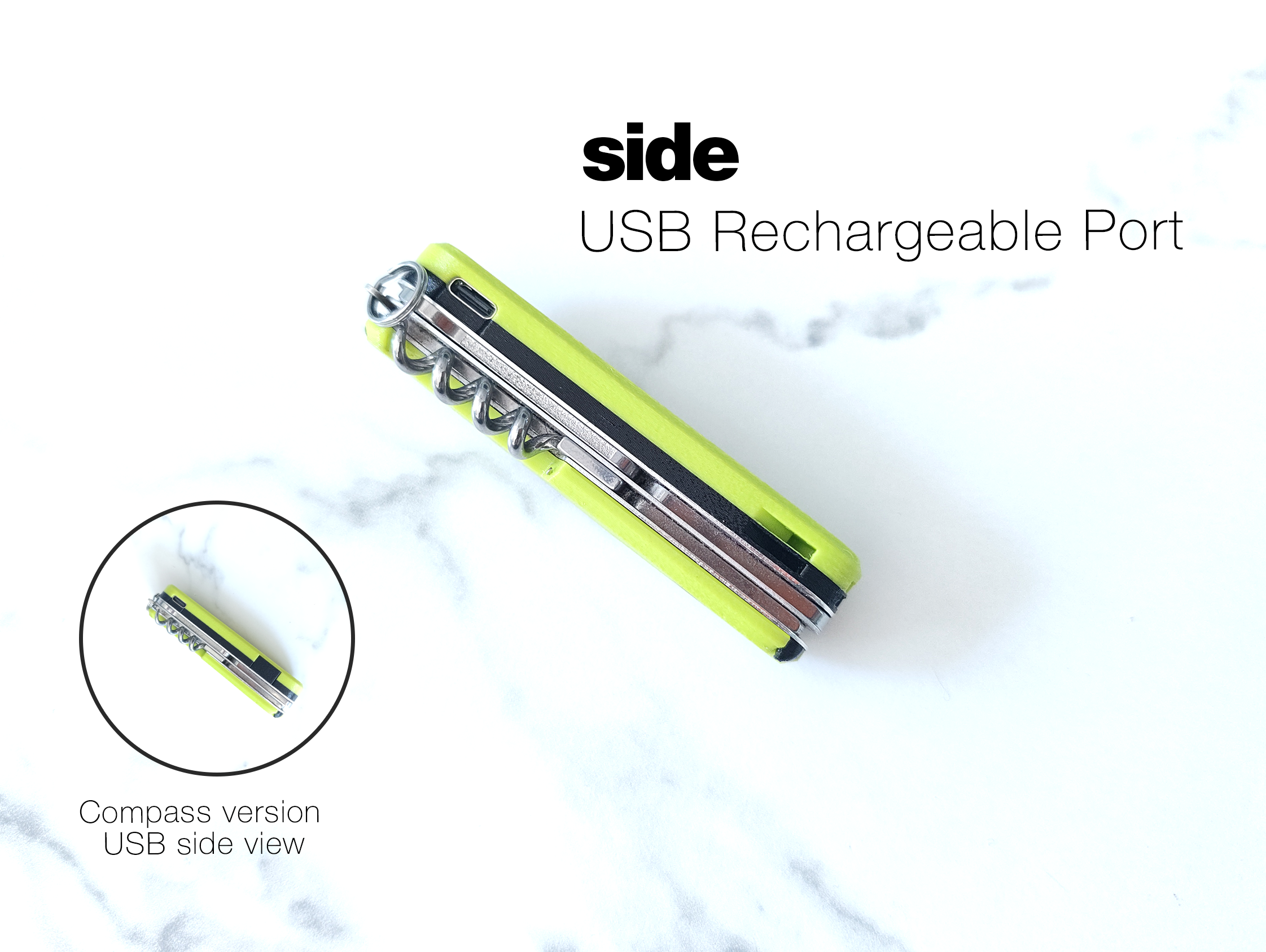

Nitecore Tube V2.0 flashlight. Optionally included. If you already have a flashlight please choose whether its USBC or Micro USB.
NOT INCLUDED
91mm Victorinox SAK
OPTIONAL ACCESSORIES
Needle, Pen, Tweezers, Leatherman Microbit (if choosing Penbit)
STANDARD ACCESSORIES (Always included)
Large toothpick, Small Toothpick, Compass (If compass backside is chosen)
VERSION 7 - NEW!

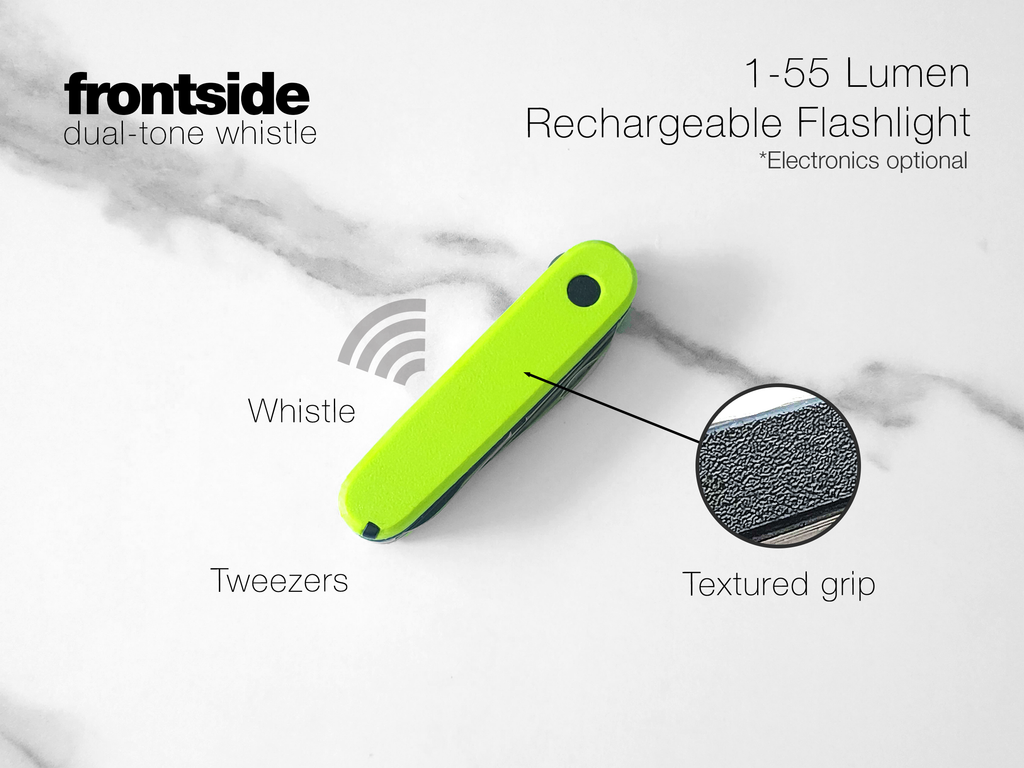

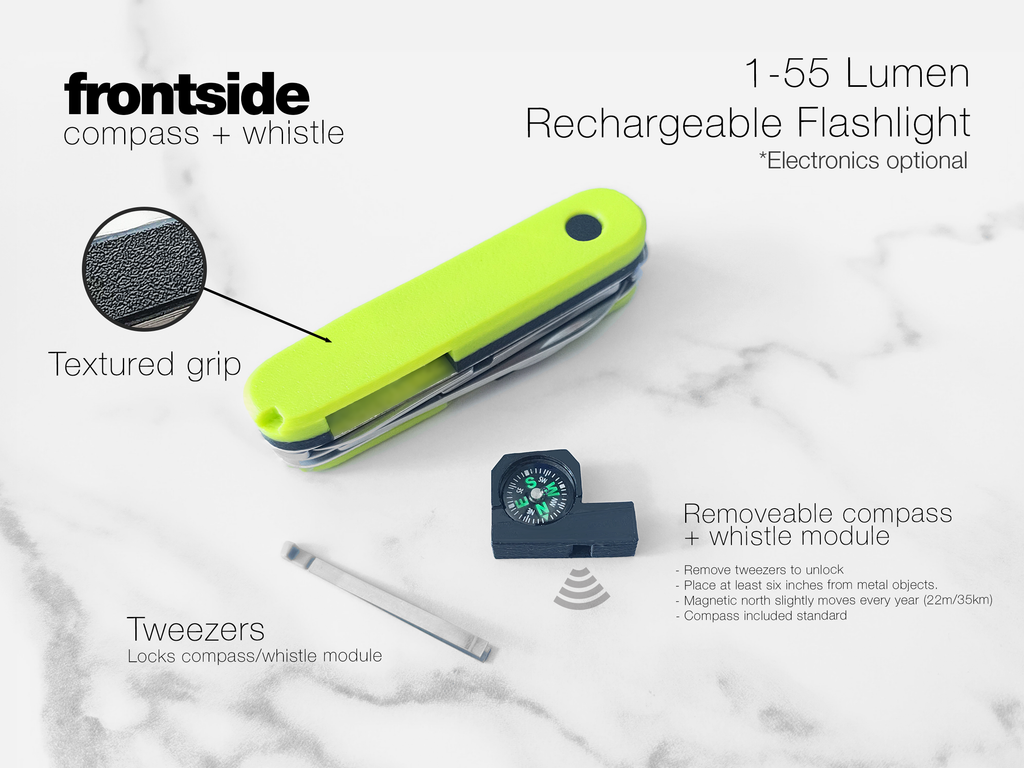

Choose frontside version between original whistle, and new compass/whistle module, secured by the tweezers.
VERSION 6
Choose backside option, between normal large removeable pen, or the new 3 way slide pen + microbit driver. Uses the standard 58mm Victorinox pen.
COLORS
Choose primary body color.
Accent color is for toothpicks and Plus sign, and center stripe. Slider will always be black.

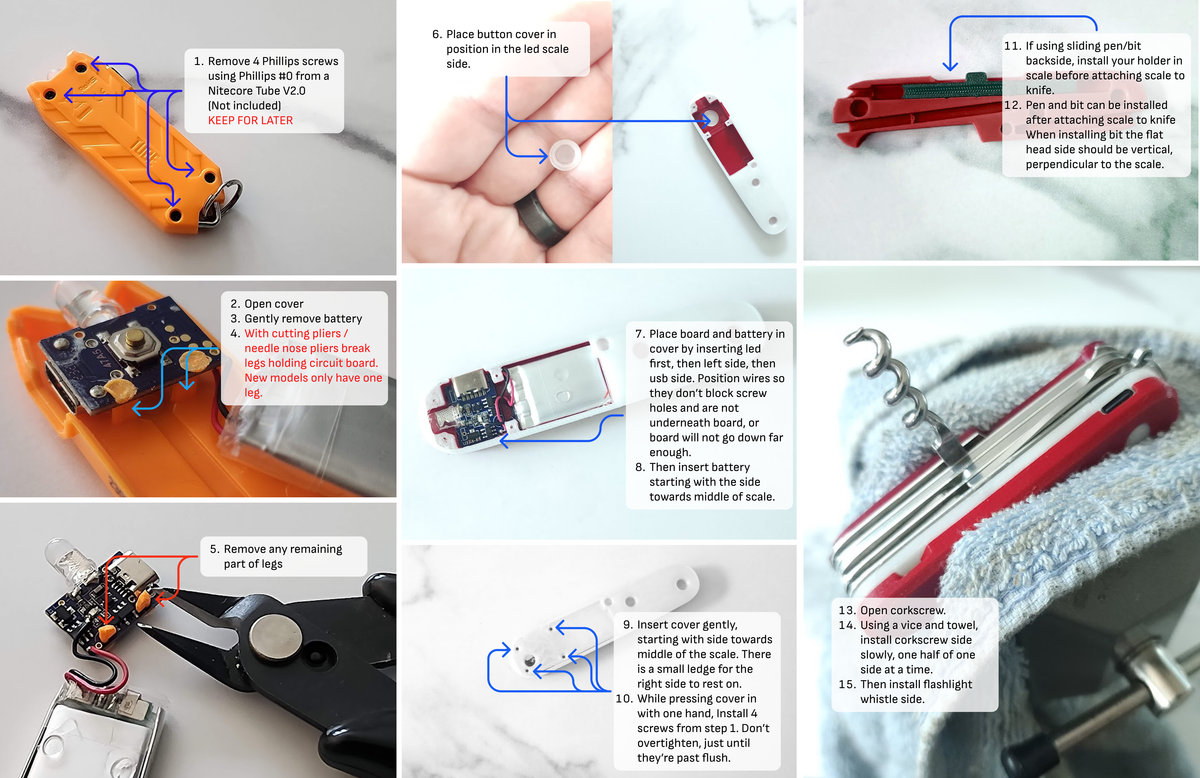

INSTALLING
1. Remove the screws on your Nitecore Tube V2.0 with a very fine screwdriver. KEEP THESE SCREWS.
2. Open the housing. Use needle-nose pliers to break the small plastic posts holding the circuit board in.
3. Remove the board and battery and place in the top of the new LED scale with the button hole aligned to the button.
4. Align the top and bottom parts of the scale being careful to check for pinched wires.
5. While holding tightly screw in the original four screws to the bottom of the scale, ensuring there is no large gaps.
ATTACHING
Use a butter knife or small knife to pop off your original scales by sliding between scale and metal layer, work the knife gently around each end and middle connection point. Reattach them on with a small clamp wrapped in a towel to protect the scales. See instructions photo.
OPERATION
1 click = 1 lumen. Stays on until click.
2 fast clicks = 55 lumen. Stays on until click.
1 click hold = 55 lumen while holding. Release to turn off.
1 click + 2nd click hold = Slow adjustment between 1 and 55 lumen.
Color Preview
Colors are approximate.
