Victorinox 91mm Flashlight / Whistle 7 Tool Super Scale for Swiss Army Knife

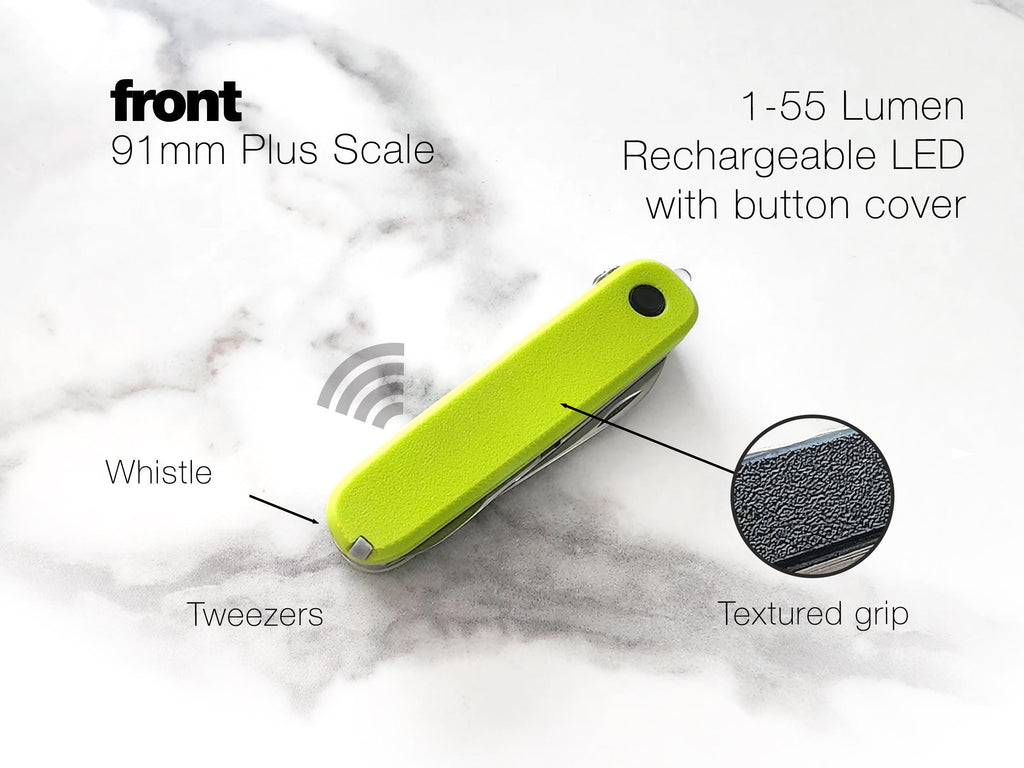

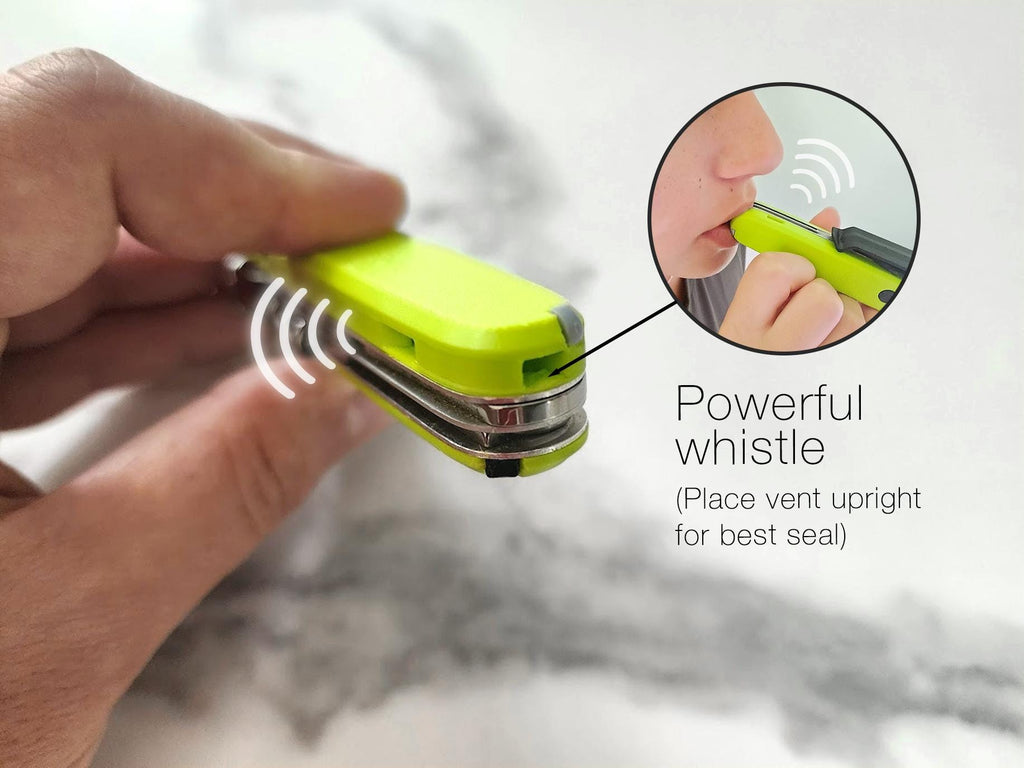

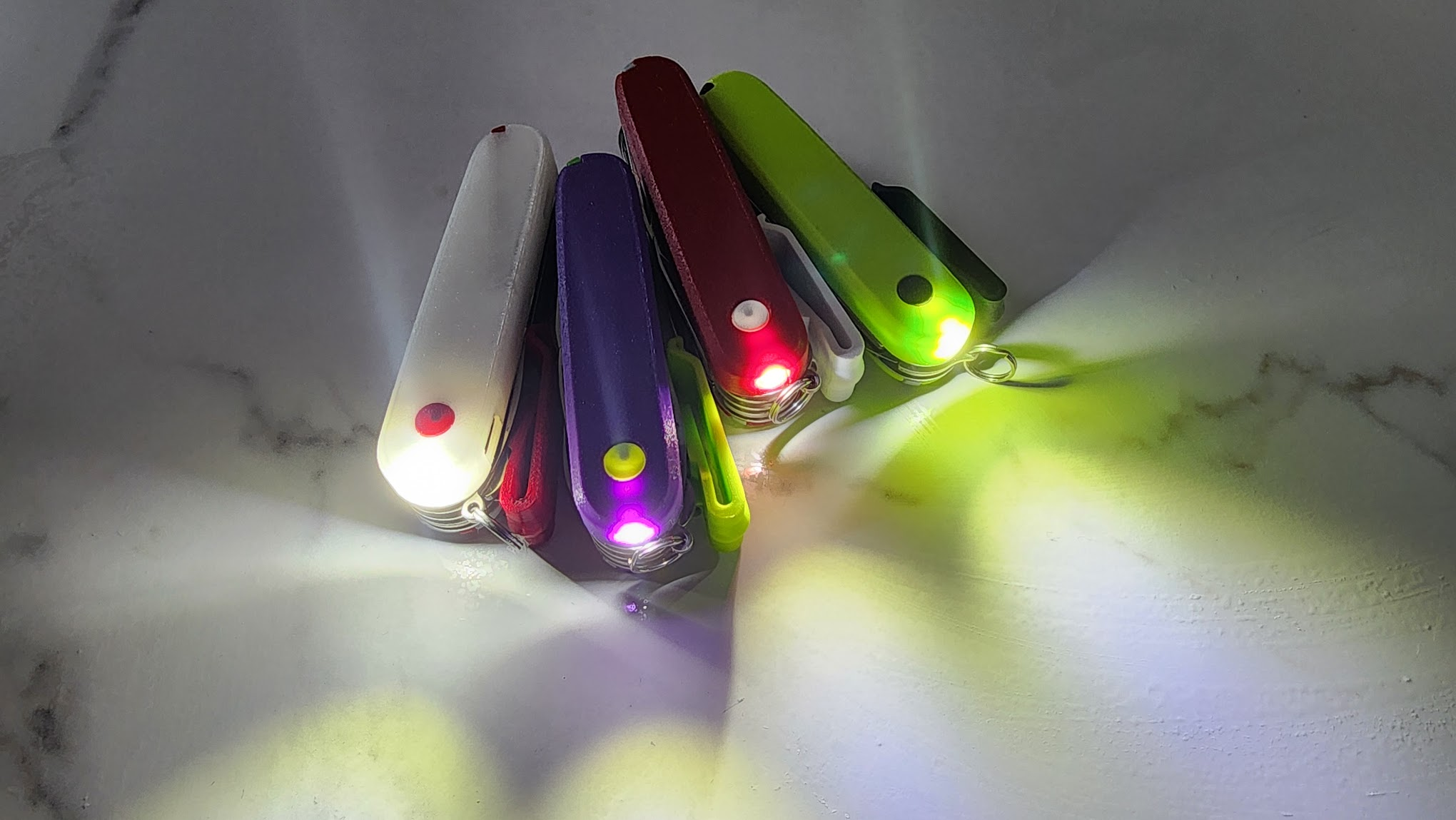

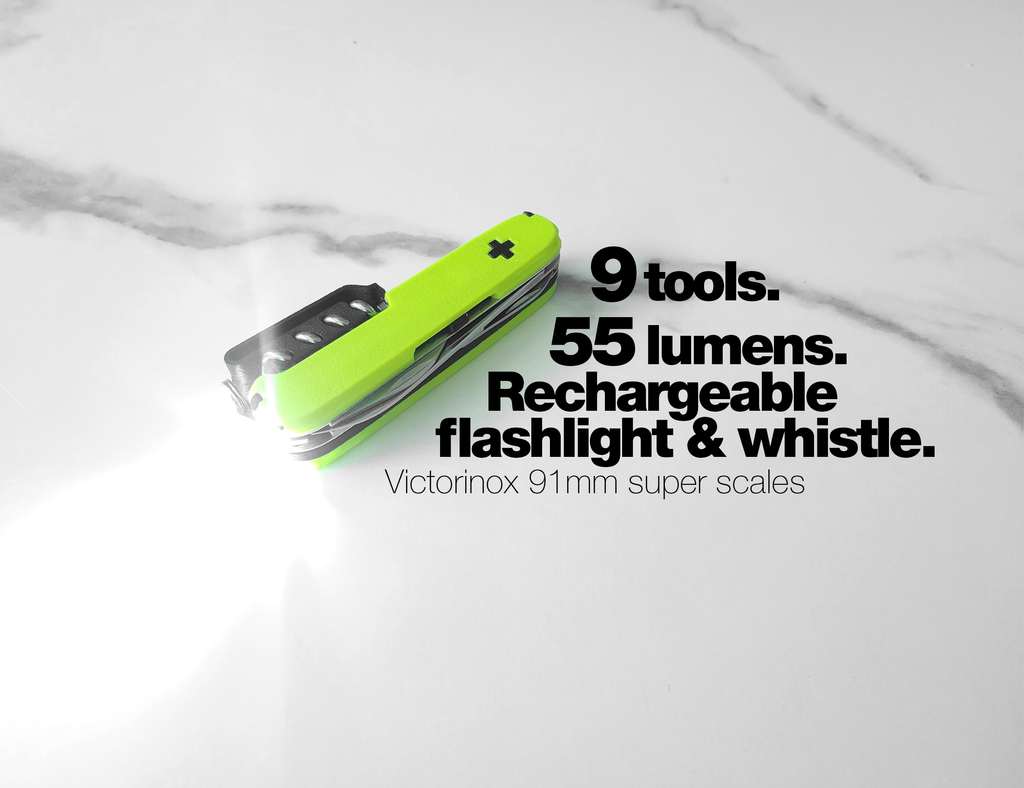

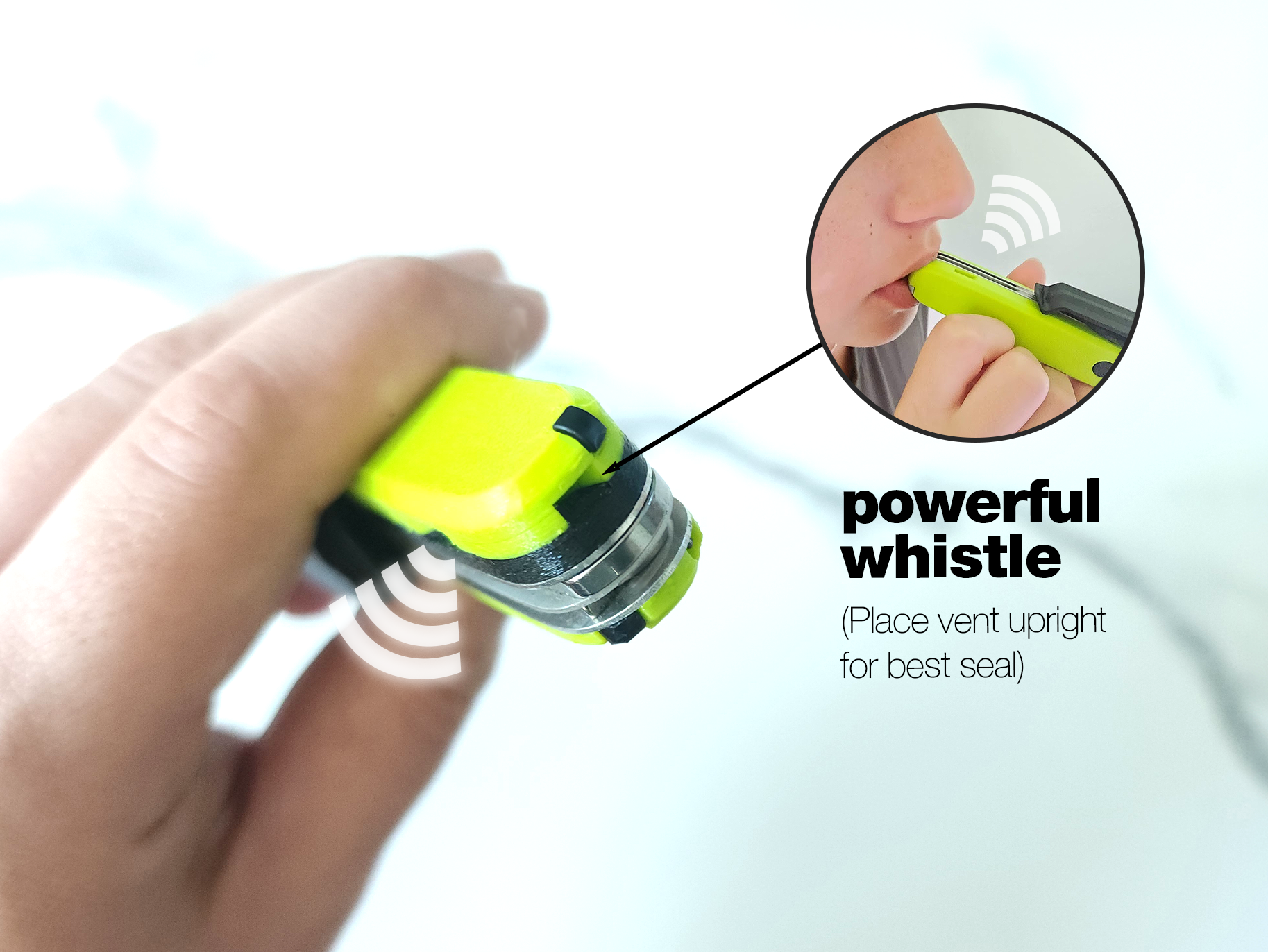

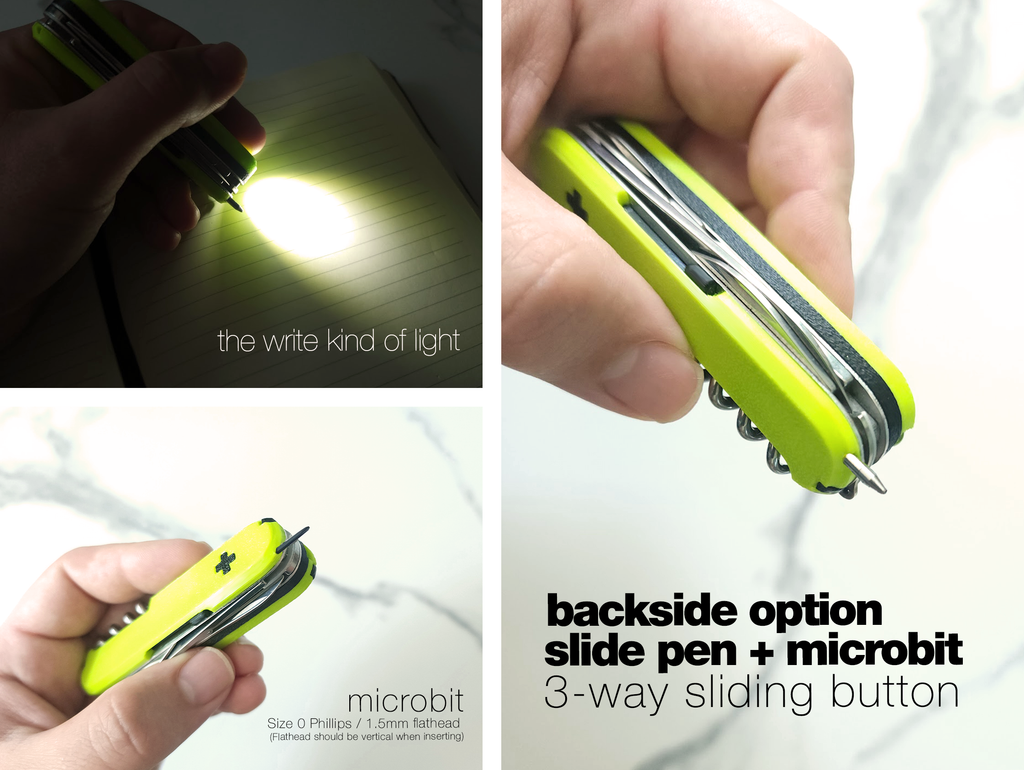

Add a whistle and 55 lumen rechargeable LED flashlight to any 91mm Victorinox. Uses the Nitecore Tube V2 flashlight.

REQUIRES
Victorinox 91mm model, NOT included.

WHAT IS INCLUDED

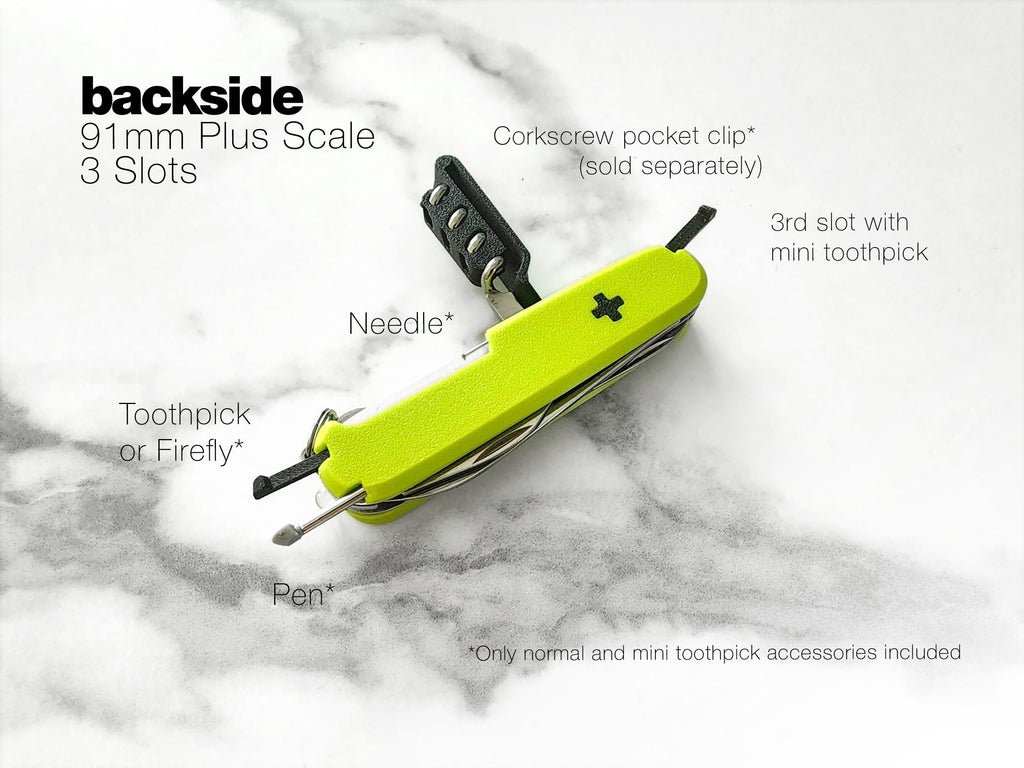

Superscales: Choose your main color and accent color
2x Short Toothpick

NOT INCLUDED

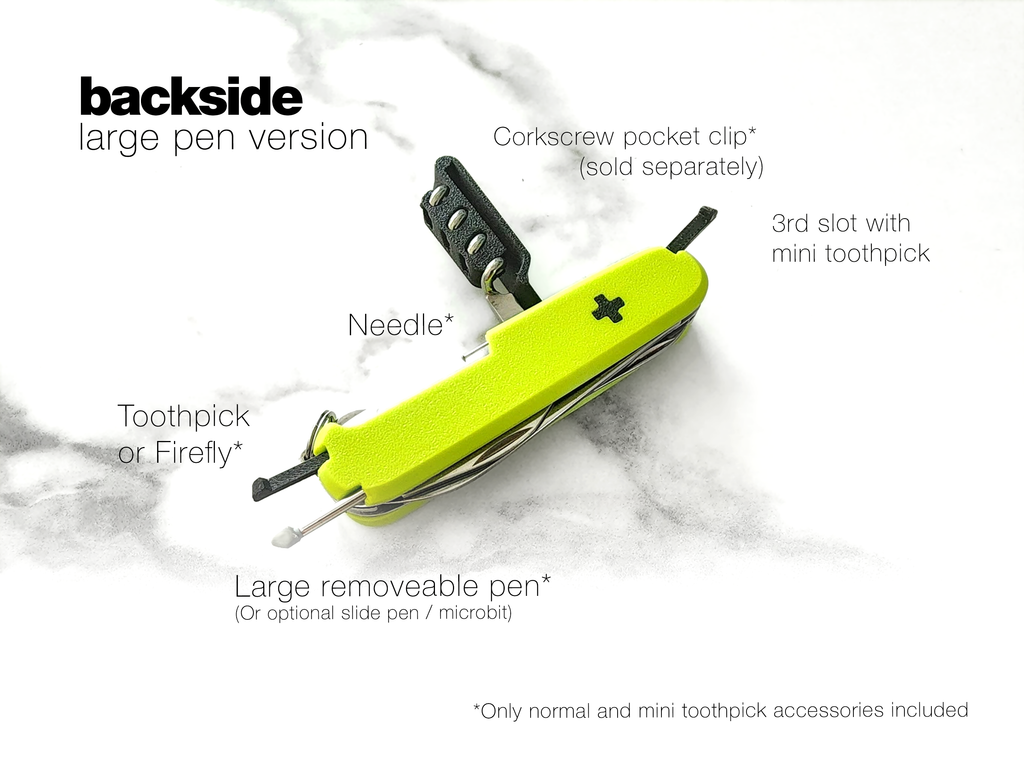

Needle, Tweezers, Pen, Knife

OPTIONAL
Electronics are optionally included are pre-assembled into the scale.

COLORS

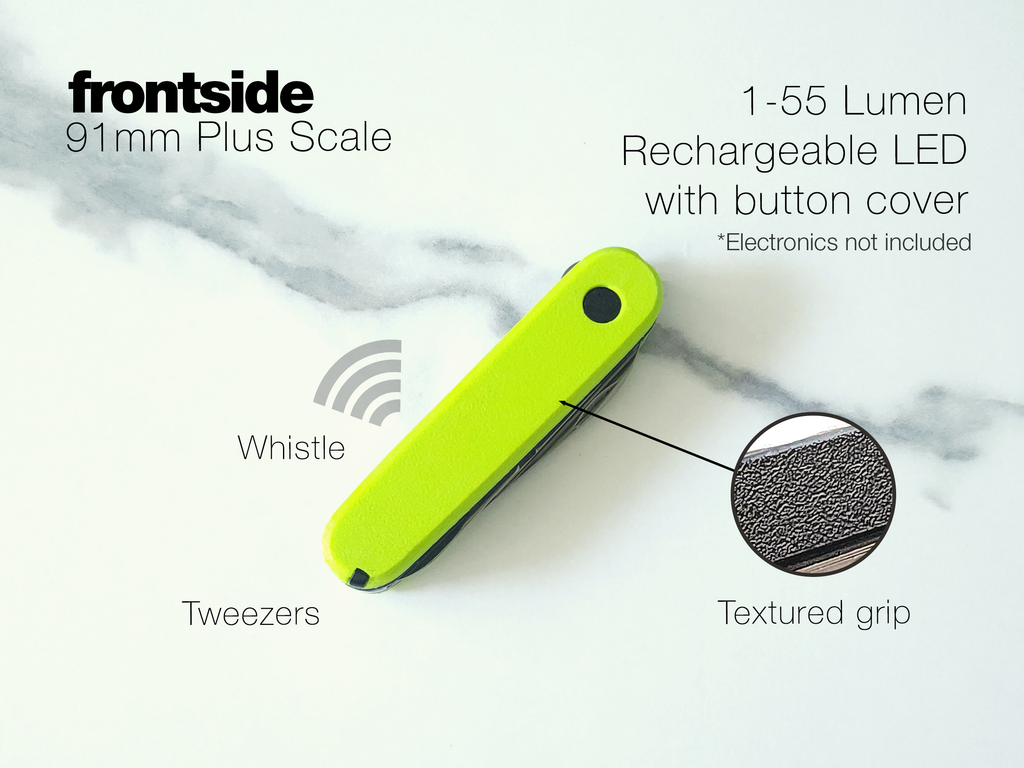

Accent color is for toothpicks and Plus sign logo. White / Orange / Yellow are slightly translucent so you can see circuit board through housing.

OPERATION

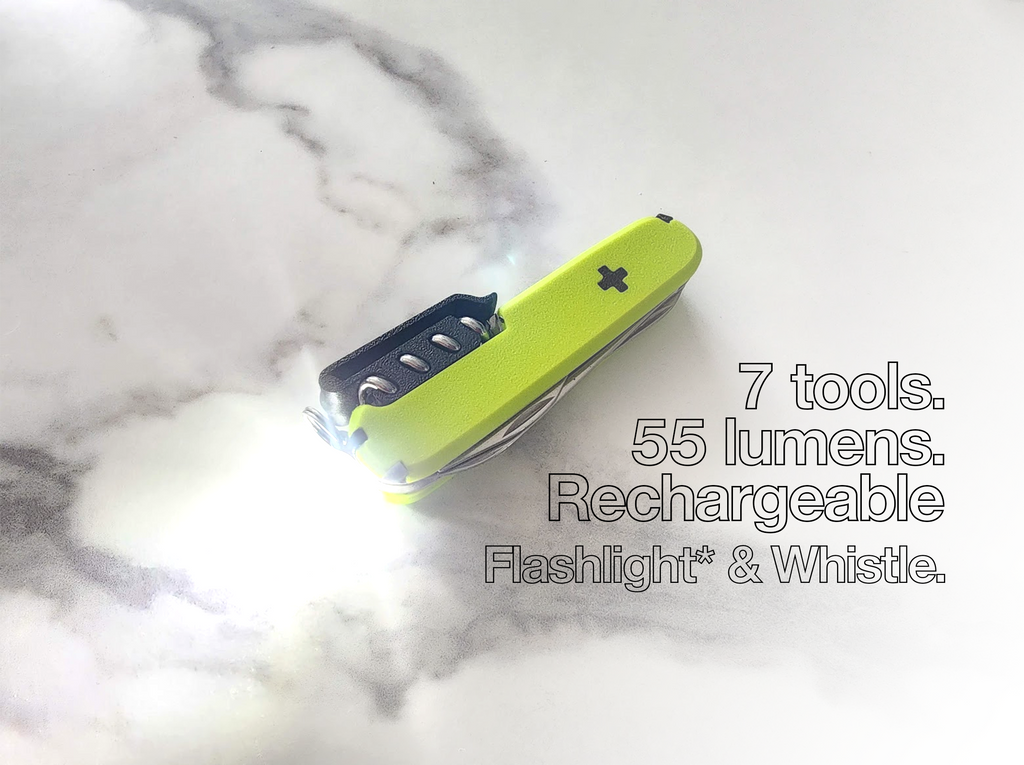

1 click = 1 lumen. Stays on until click. 2 fast clicks = 55 lumen. Stays on until click. 1 click hold = 55 lumen while holding. Release to turn off. 1 click + 2nd click hold = Slow adjustment between 1 and 55 lumen.

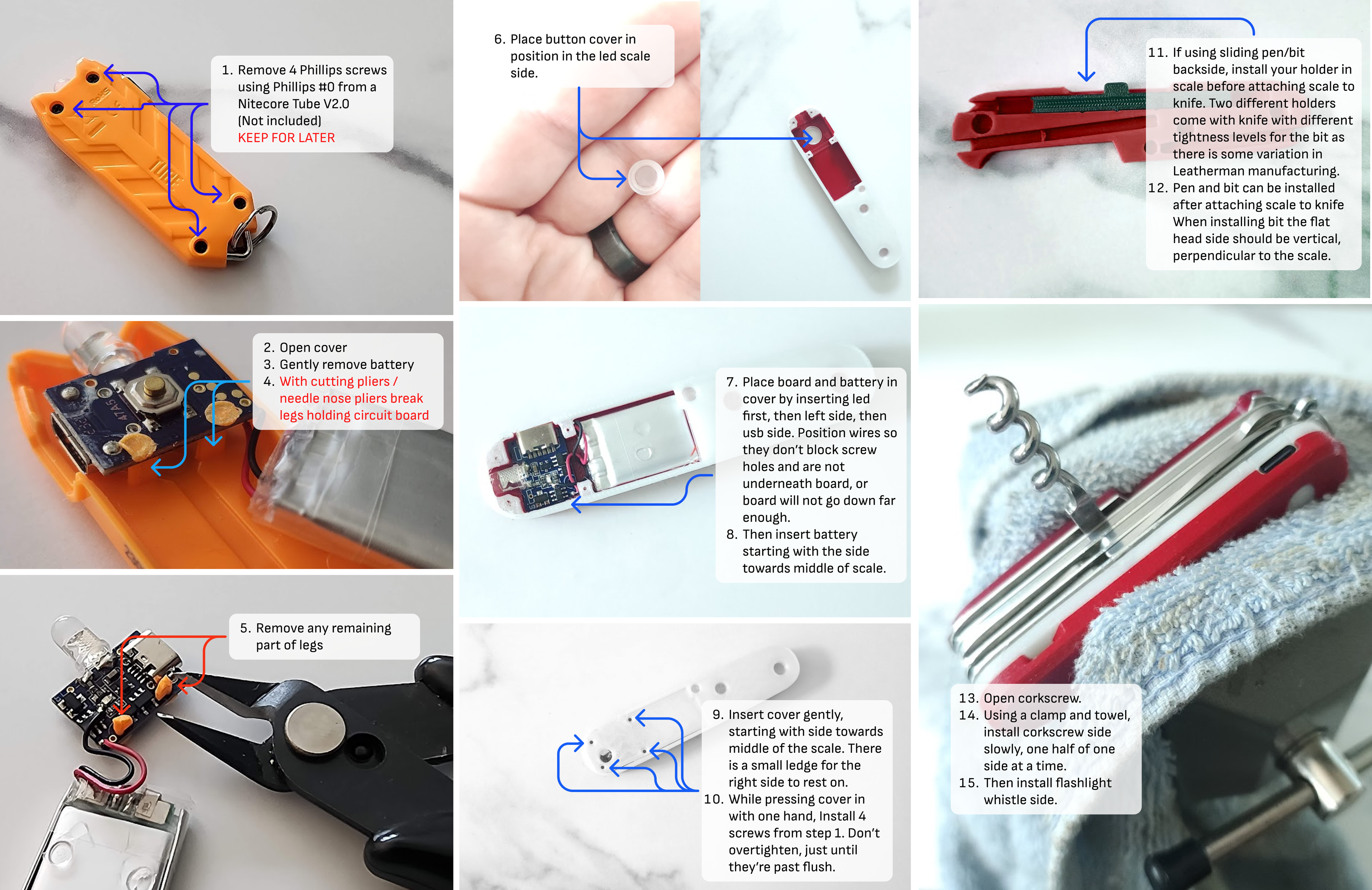

INSTALLING

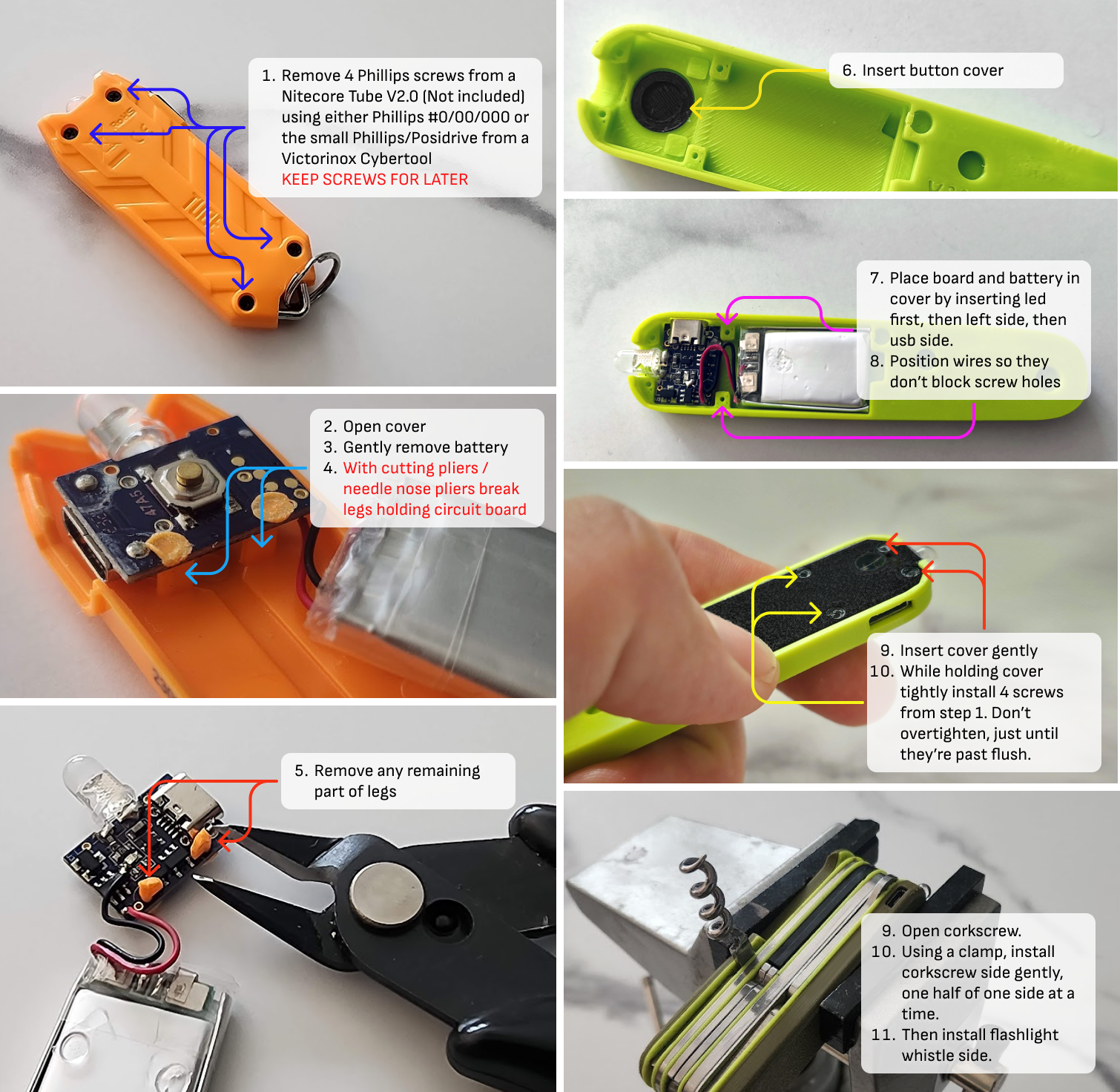

1. Remove the screws on your Nitecore Tube V2.0 with a very fine screwdriver. KEEP THESE SCREWS.
2. Open the housing. Use needle-nose pliers to break the small plastic posts holding the circuit board in.
3. Remove the board and battery and place in the top of the new LED scale with the button hole aligned to the button.
4. Align the top and bottom parts of the scale being careful to check for pinched wires.
5. While holding tightly screw in the original four screws to the bottom of the scale, ensuring there is no large gaps. ATTACHING Use a butter knife or small knife to pop off your original scales by sliding between scale and metal layer, work the knife gently around each end and middle connection point. Add a small amount of super glue to the new scale holes and pop them on with a small clamp wrapped in a towel to protect the scales.
